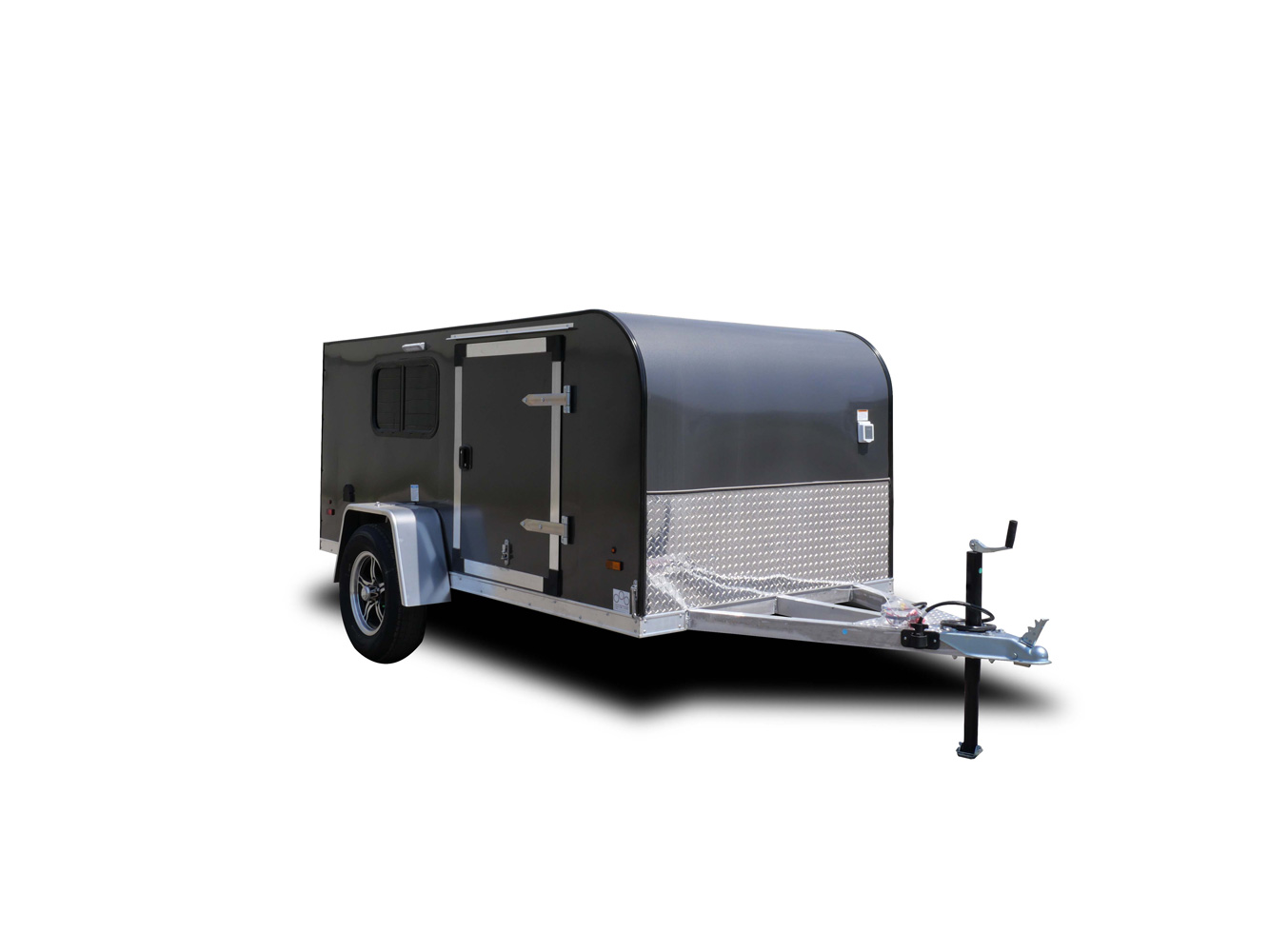

AmeraLite Traverse Trailers

The Traverse is our light, aluminum frame camper trailer that comes standard with features such as aluminum wheels, a pair of stabilizer jacks, interior and exterior lights! Two more very nice standard features are the standard finished interior and prep for an A/C Unit. With a new A/C you can take the comfort of your trailer to your local campground or on a trip at your favorite National Park. This 5’ x 10’ camper has packages that can be optioned on to fit your specific needs.

VIEW THE TOP 10 REASONS TO BUY AMERALITE

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:ATAT510SA
GVWR:3500 lb.
Payload Capacity:2500 lb.
Exterior Length:13' 11"
Exterior Width:6' 6"
Exterior Height:5' 2"
Interior Length:9' 8"
Interior Width:4' 8"
Interior Height:3' 6"
Rear Door Type:Flip-Up Single
Rear Door Width:4' 7"
Rear Door Height:3' 9"
Coupler Size:2"
Curb Weight:1000 lb.
Hitch Weight:325 lb.
Hitch Height:16"
Platform Height:19"
Axle:1 - 3500 lb.
Suspension:TBD
Brakes:Optional
Tires:ST205/75R15/C
Wheels:5 Bolt
Main Frame:3" Tube
Floor:3/4" Black Nudo Floor
Walls:9mm White Vinyl Walls

Features & Options

Print
  • All Aluminum Tube Construction
  • Flat Front
  • Floor Cross Members 24" on Center
  • Roof Bows 24" on Center
  • Fully Integrated Triple Tube Tongue
  • 2000# Tongue Jack
  • 2" Coupler
  • 7-way Plug
  • Spring Axle Blocked up 2
  • ST205/75R15 Radial Tires for SA and TA2 models
  • Aluminum Wheels
  • 1) Aluminum Wheel Spare Tire Exterior Mounted
  • 1) Pair Rear Stabilizer Jacks
  • Single Swing Rear Door
  • Prehung Side Door on Curbside
  • 3/4" Engineered Wood Underlayment on Roof Bows
  • One-Piece Aluminum Roof
  • Roof Wired and Prepped for A/C (A/C not included)
  • .030 Screwless Exterior Metal
  • 24" High Front Stoneguard
  • Aluminum Fenders
  • 3) Flow-Through Side Vents
  • 3/4" Black Nudo Floor
  • 9MM White Vinyl Walls
  • Finished White Vinyl Ceiling
  • No Side Door on 5' wide Models
  • LED Clearance Lights and Tail Lights
  • 3) Exterior Loading Lights with 1) Switch
  • 2) Interior Dome Lights with 1) Switch
  • 2) Interior Blue LED Bullet Lights with 1) Switch
  • 12 Volt Battery with Charge Line
  • 1) Cabinet with Stretch Netting
  • 1) 30 Amp Panel
  • 1) 30 Amp Marine Plug with 25' Cord
  • 4) Interior 110 Volt Recepts
  • 1) 110 Volt Mini-Heater
  • 1) Fire Extinguisher
  • 1) CO2 Detector
  • 1) Fire Alarm
  • 3) Windows
  • Black Trim
  • Black Stoneguard
  • Black Fenders
  • Black Steel Mod Rims
  • Black Bar Locks and Hinges
  • Black Screws on Trim and Stoneguard
  • No Warrantee on any Paint Peel or Chipping
  • (2) 4' LED Lights with (1) Switch
  • (2) 110 Volt Interior Recepts
  • 30 Amp Service Panel
  • 30 Amp Marine Plug
  • 25' Long Cord for 30 Amp Marine Plug
  • (4) 4' LED Lights
  • (2) Switches for 4' Lights
  • (4) 110 Volt Interior Recepts
  • 30 Amp Service Panel
  • 30 Amp Marine Plug
  • 25' Long Cord for 30 Amp Marine Plug
  • (4) 4' LED Lights
  • (2) Switches for 4' Lights
  • (4) 110 Volt Interior Recepts
  • 50 Amp Service Panel
  • 50 Amp Marine Plug
  • 25' Long Cord for 50 Amp Marine Plug
  • 12" High ATP Interior Kickplate over top of 3/8" Drymax
  • 9" Deep
  • Color Matched Aluminum Skin
  • 2) LED Backup Lights under Spoiler with 1) Switch
  • Double Doors- Reduces Opening By 6
  • Does not Affect Ramp Door Opening Height

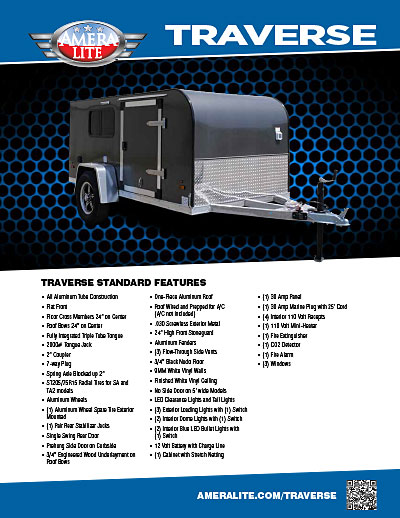

Literature
