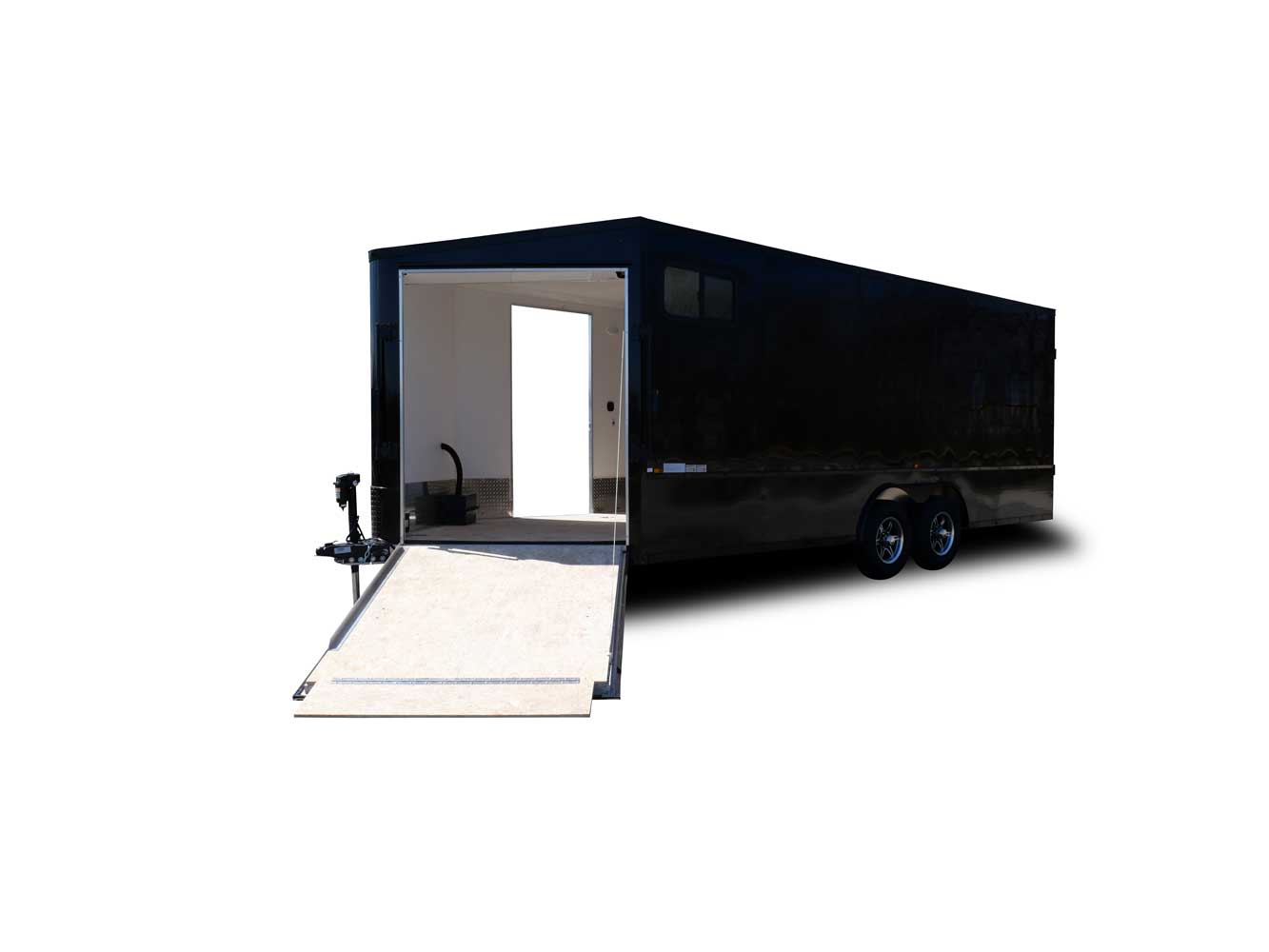

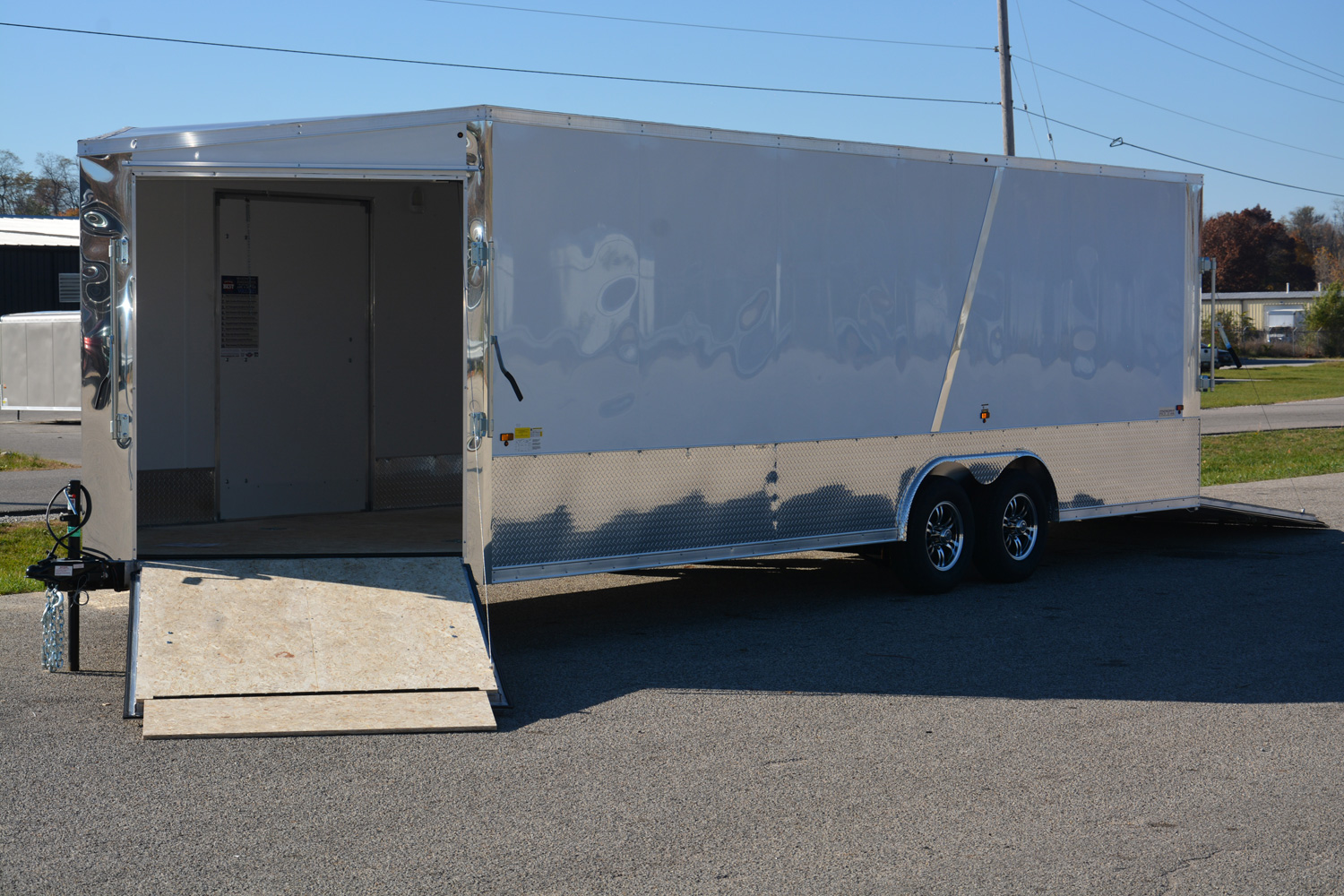

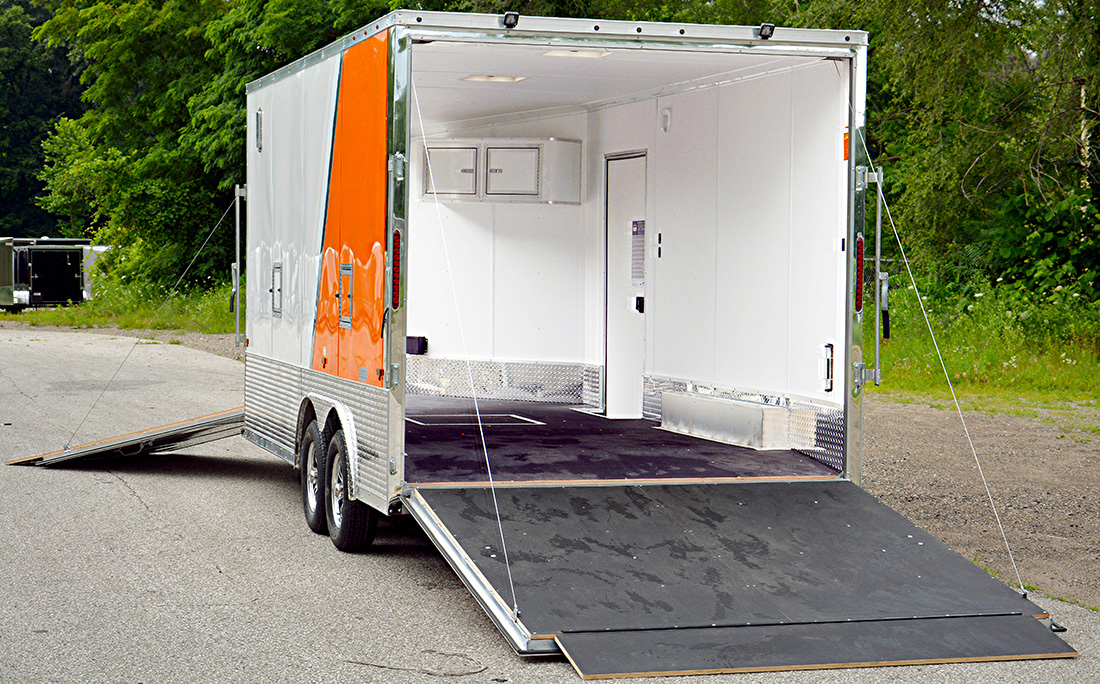

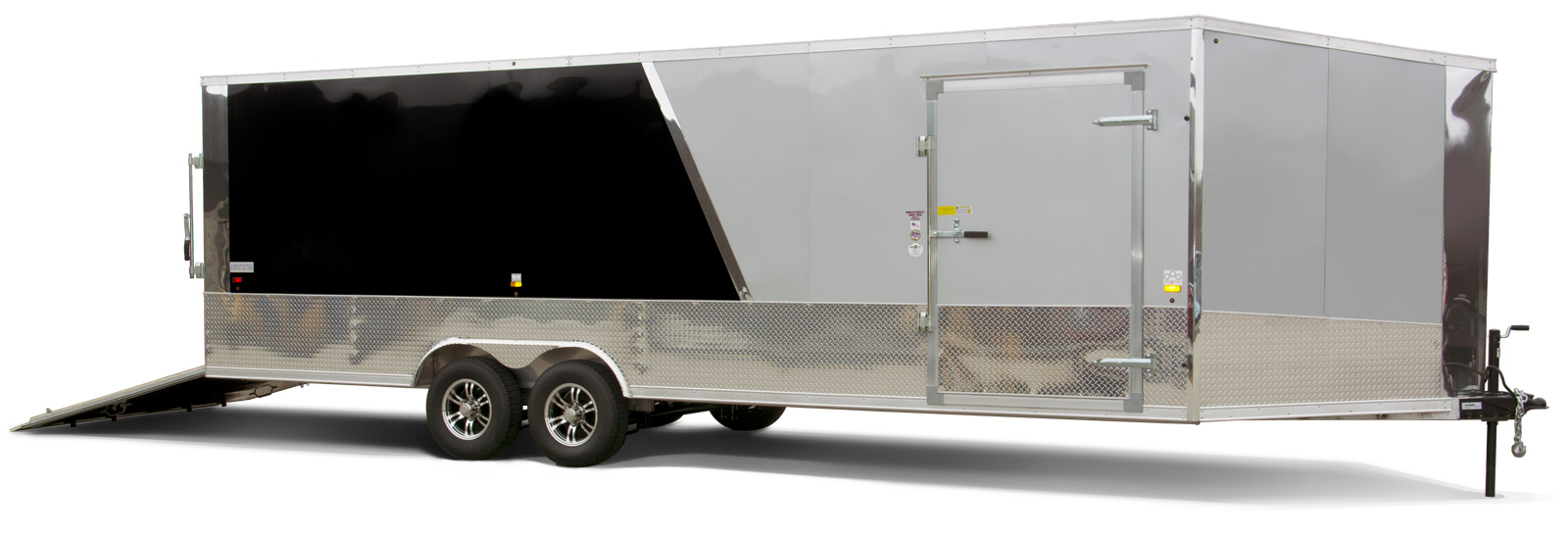

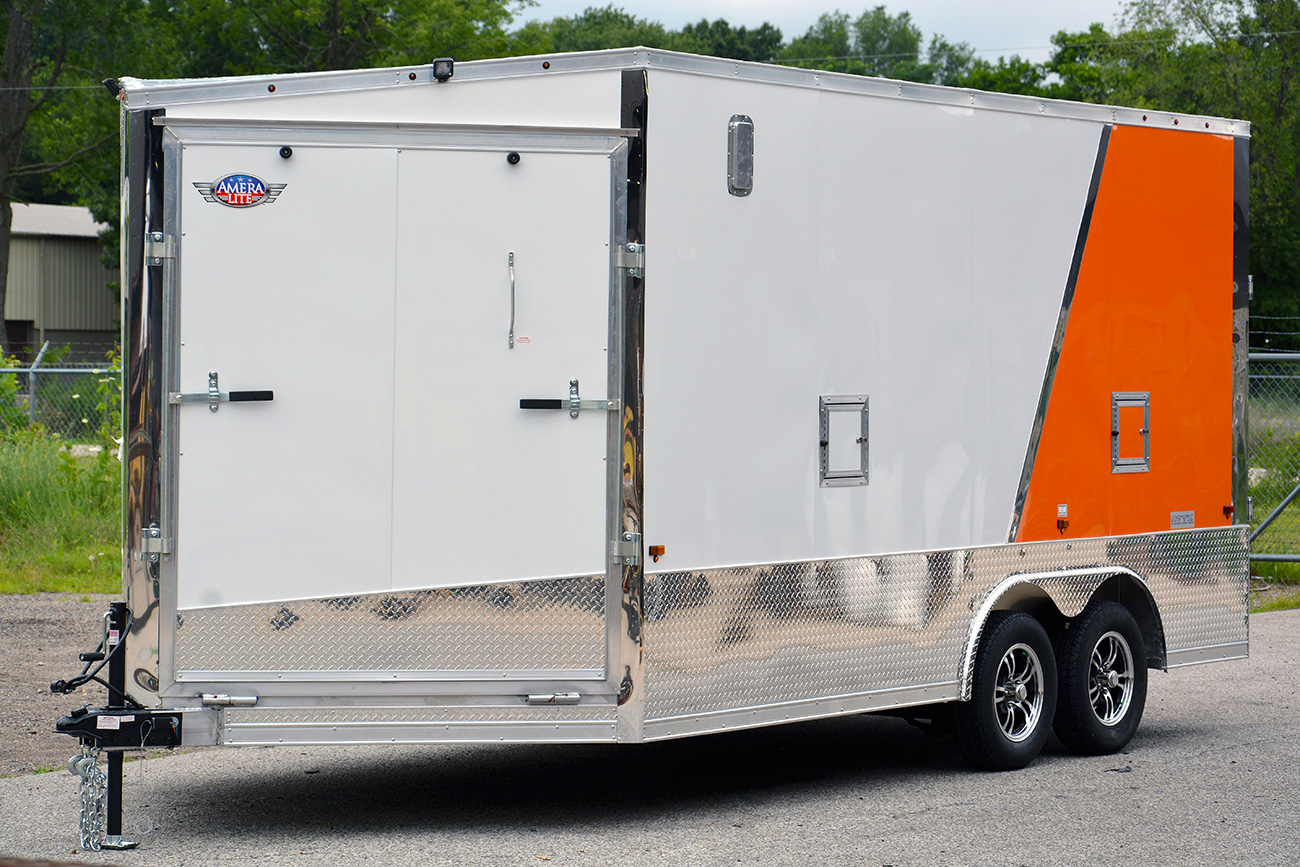

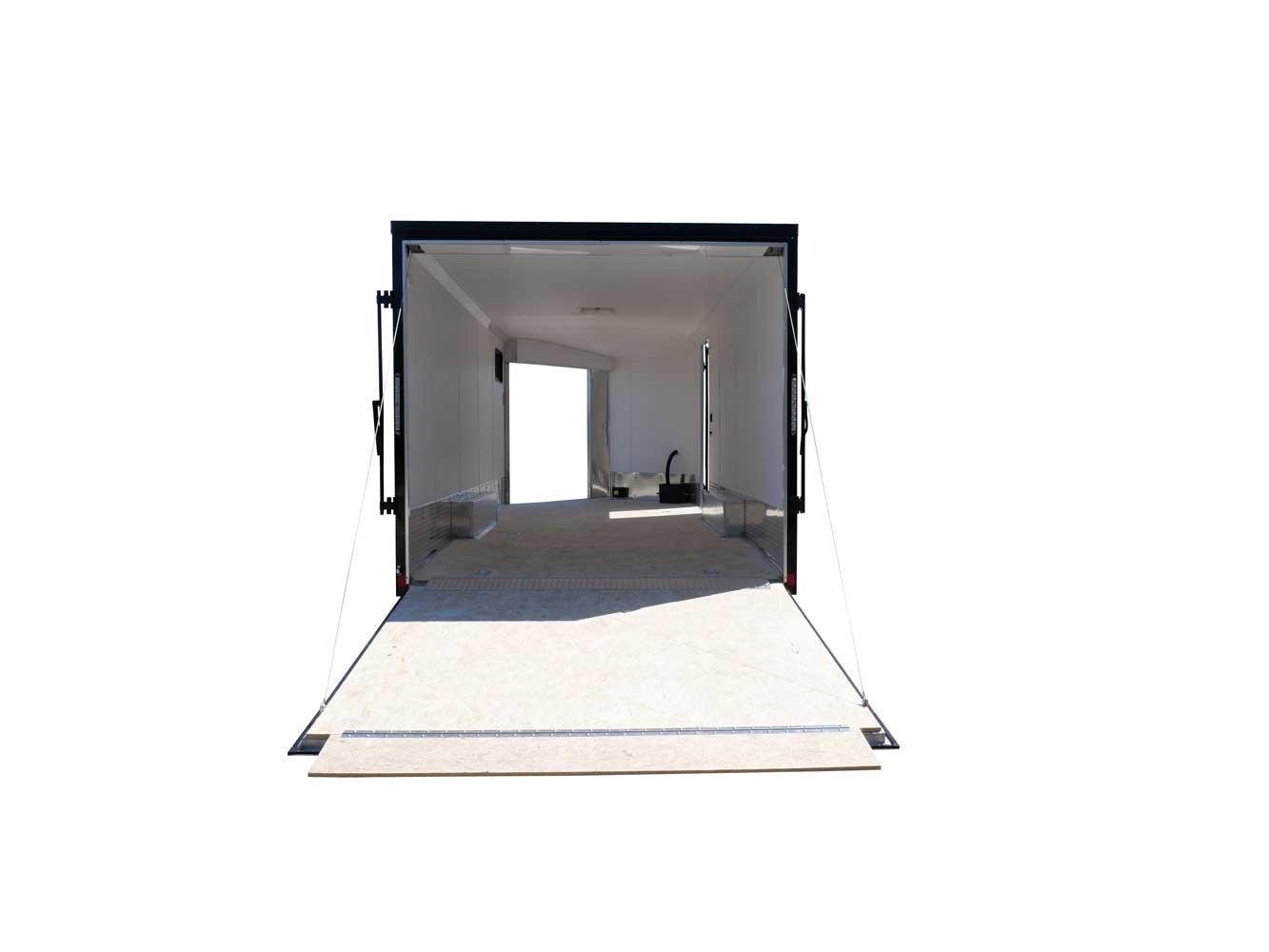

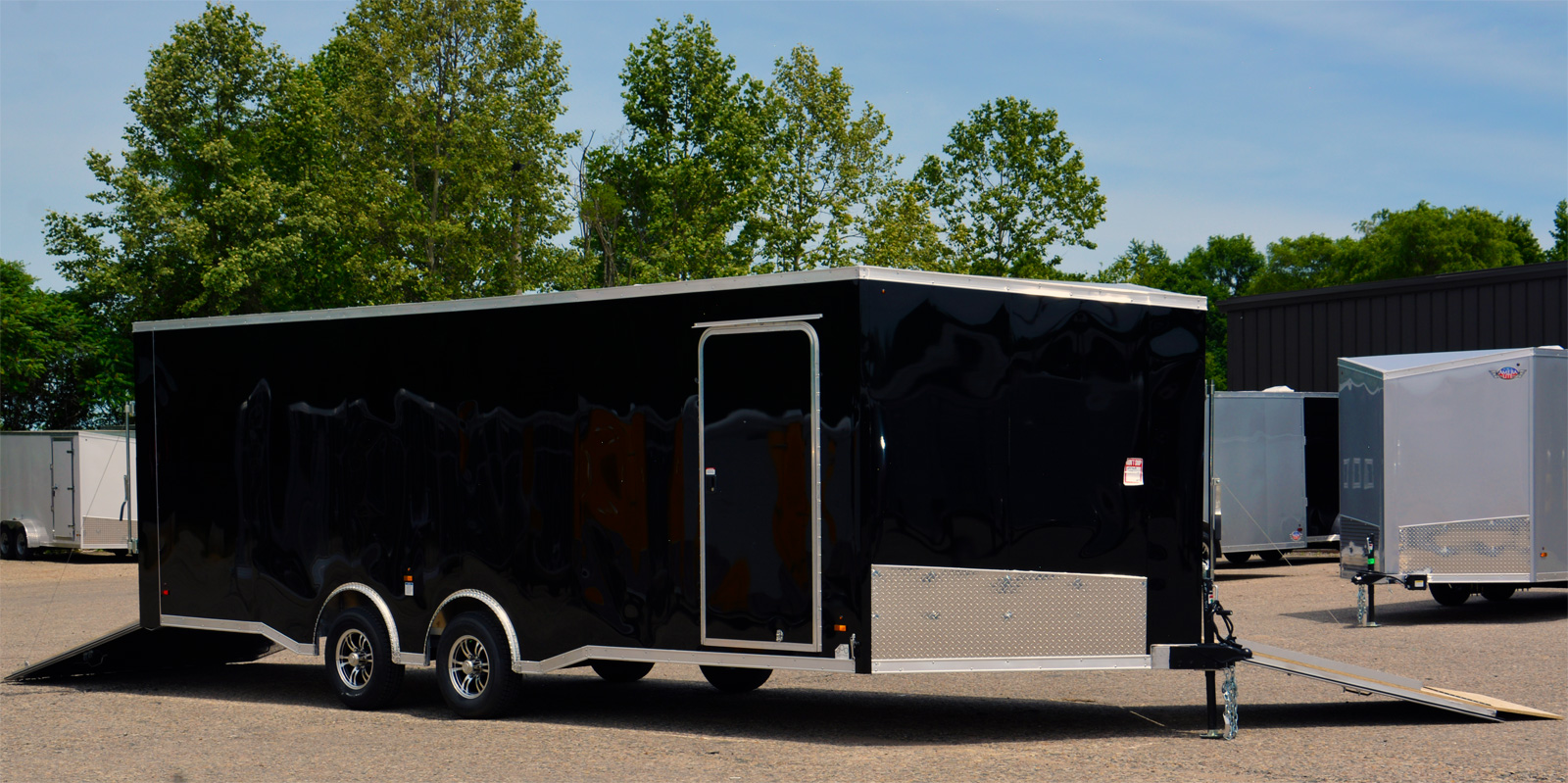

AmeraLite Elevation (WATTX) Aluminum Combo-Hauler

When you need to bring everything you’ve got, the Elevation Combo-Hauler is the trailer to get the job done.

The Elevation Combo-Hauler is big and burly enough to haul your vehicles, ATVs, UTVs and sleds and your gear with confidence that they are completely protected and secure. Drive on and off with ease. Pulls like a dream. Available In standard sizes from 8.5' x 20' to 8.5' x 32'.

VIEW THE TOP 10 REASONS TO BUY AMERALITE

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:WATTX8520TA2WATTX8520TA3WATTX8520TA4WATTX8522TA2WATTX8522TA3WATTX8522TA4WATTX8524TA2WATTX8524TA3WATTX8524TA4WATTX8526TA3WATTX8526TA4WATTX8528TA3WATTX8528TA4WATTX8530TA3WATTX8530TA4WATTX8532TA3WATTX8532TA4
GVWR:7000 lb.10400 lb.12000 lb.7000 lb.10400 lb.12000 lb.7000 lb.10400 lb.12000 lb.10400 lb.12000 lb.10400 lb.12000 lb.10400 lb.12000 lb.10400 lb.12000 lb.
Payload Capacity:3720 lb.4810 lb.7610 lb.3570 lb.4660 lb.7160 lb.4960 lb.4510 lb.7010 lb.4360 lb.6860 lb.3910 lb.6710 lb.3760 lb.6710 lb.7760 lb.6710 lb.
Exterior Length:21' 7"21' 7"21' 7"23' 7"23' 7"23' 7"25' 7"25' 7"25' 7"27' 7"27' 7"29' 7"29' 7"31' 7"31' 7"33' 7"33' 7"
Exterior Width:8' 8"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"
Exterior Height:8' 3"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"
Interior Length:20' 0"20' 0"20' 0"22' 0"22' 0"22' 0"24' 0"24' 0"24' 0"26' 0"26' 0"28' 0"28' 0"30' 0"30' 0"32' 0"32' 0"
Interior Width:8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"
Interior Height:6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"
Rear Door Type:RampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRamp
Rear Door Width:7' 9"7' 9"7' 9"7' 9"7' 9"7' 9"7' 9"7' 9"7' 9"7' 9"7' 9"7' 9"7' 9"7' 9"7' 9"7' 9"7' 9"
Rear Door Height:6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"
Coupler Size:2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"
Curb Weight:3280 lb.3580 lb.3930 lb.3430 lb.3730 lb.4080 lb.3580 lb.3880 lb.4230 lb.4230 lb.4380 lb.4380 lb.4530 lb.4530 lb.4680 lb.4680 lb.4830 lb.
Hitch Weight:328 lb.358 lb.393 lb.343 lb.373 lb.408 lb.358 lb.388 lb.423 lb.423 lb.438 lb.438 lb.453 lb.453 lb.468 lb.468 lb.483 lb.
Hitch Height:16"16"16"16"16"16"16"16"16"16"16"16"16"16"16"16"16"
Platform Height:19"19"16"19"19"18"19"19"18"19"18"19"18"16"18"16"18"
Axle:2-3,5002-5,2002-6,0002-3,5002-5,2002-6,0002-3,5002-5,2002-6,0002-5,2002-6,0002-5,2002-6,0002-5,2002-6,0002-5,2002-6,000
Suspension:TBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBD
Brakes:OptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptional
Tires:ST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/C
Wheels:5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt
Main Frame:3" Tube3" Tube3" Tube3" Tube3" Tube3" Tube3" Tube3" Tube3" Tube3" Tube3" Tube3" Tube3" Tube3" Tube3" Tube3" Tube3" Tube
Floor:3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor
Walls:9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls9mm White Vinyl Walls

Features & Options

Print
  • All Aluminum Tube Construction
  • Flat Top Design with Sloped V-Nose
  • 4' Front Wedge with Ramp Door
  • Integrated Tongue
  • Rear Ramp Door with Flap
  • Beavertail
  • Wall Posts 16" on Center
  • Floor Cross Members 16" on Center
  • Roof Bows 16″ on Center
  • 2000# Tongue Jack
  • 2 5/16" Coupler
  • Drop Spring Axles
  • ST205/75R15 Radial Tires for TA2 models
  • ST225/75R15 Radial Tires for TA3 models
  • ST235/80R16 Radial Tires for TA4 models
  • Aluminum Wheels
  • One-Piece Aluminum Roof
  • 4) 5000# Floor D-Rings
  • 32" Side Door with Bar Lock (no Stepwell)
  • Heavy Duty Skid Plates under Rear Corners
  • Aluminum Exterior Fenders
  • 24" High Front Stoneguard
  • 3/8" Engineered Wood Walls
  • 3/4" Engineered Wood Floor
  • Flow Through Side Vents
  • LED Clearance Lights and Tail Lights
  • Operational LED Back-up Lights
  • 2) Interior LED Dome Lights
  • Switch on Wall for Dome Lights
  • .030 Metal with Screwless Sides
  • Heavy Duty 3" Top & Bottom Trim
  • Bright Anodized Front Corner Nose Corner
  • Bright Anodized Rear Corners & Header
  • Aluminum Door Hold Backs
  • Sand Pad Shipped Loose
  • 1000# Ramp Door
  • 4) 5000# Floor D-Rings
  • 6) 1200# Wall D-Rings
  • Rear Fold-Down Stabilizer Jacks
  • Interior Mount for Spare Tire Shipped Loose
  • ST205/75R15 Aluminum Wheel Spare Tire Shipped Loose
  • 6" Extra Height Including Rear Door
  • 6" Extra Height to Side Door
  • 2000# Ramp Door
  • Rear Fold-Down Stabilizer Jacks
  • 4) 5,000# Floor D-Rings
  • 6) Wall D-Rings
  • 1) Interior Mount for Spare Tire Shipped Loose
  • ST205/75R15 Aluminum Wheel Spare Tire Shipped Loose
  • 55" Bar Lock on Side Door
  • 12" Extra Height Including Rear Door
  • 6" Extra Height to Side Door
  • 2000# Ramp Door
  • Rear Fold-Down Stabilizer Jacks
  • 4) 5,000# Floor D-Rings
  • 6) Wall D-Rings
  • 1) Interior Mount for Spare Tire Shipped Loose
  • ST205/75R15 Aluminum Wheel Spare Tire Shipped Loose
  • 55" Bar Lock on Side Door
  • Available with Spread Torsion Axles and Drop Skirting only
  • 8.5' Wide Tandem Axle Trailer Models Only
  • Not Available on Trailers Less than 20' Long
  • Flip-up Door Centered Over Axles
  • Includes Fender Attached to Door
  • Removable Wheel Well
  • Eberhard Recessed Door Latch
  • Gas Shocks on Door
  • Available with Torsion Axles Only (Does Not Include Torsion Upgrade)
  • Includes Drop Skirting
  • 2 Separate Fenders Around Tires
  • Sides Dropped in Fender Area
  • Can be Used with Standard or Spread Tandem Axles
  • 2) 4' LED Lights with 1) Switch
  • 2) 110 Volt Interior Recepts
  • 30 Amp Service Panel
  • 30 Amp Marine Plug
  • 25' Long Cord for 30 Amp Marine Plug
  • 4) 4' LED Lights
  • 2) Switches for 4' Lights
  • 4) 110 Volt Interior Recepts
  • 30 Amp Service Panel
  • 30 Amp Marine Plug
  • 25' Long Cord for 30 Amp Marine Plug
  • 4) 4' LED Lights
  • 2) Switches for 4' Lights
  • 4) 110 Volt Interior Recepts
  • 50 Amp Service Panel
  • 50 Amp Marine Plug
  • 25' Long Cord for 50 Amp Marine Plug
  • Black Trim
  • Black Stoneguard
  • Black Fenders
  • Black Aluminum Rims
  • Black Bar Locks and Hinges
  • Black Screws on Trim and Stoneguard
  • Screwless Glued Seams (No S-Lock)
  • No Warrantee on any Paint Peel or Chipping
  • 12" High ATP Interior Kickplate over top of 3/8" Drymax
  • 9" Deep
  • Color Matched Aluminum Skin
  • 2) LED Backup Lights under Spoiler with 1) Switch
  • Double Doors- Reduces Opening By 6"
  • Does not Affect Ramp Door Opening Height

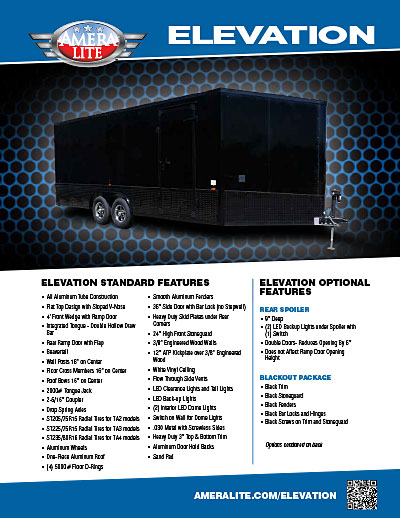

Literature
